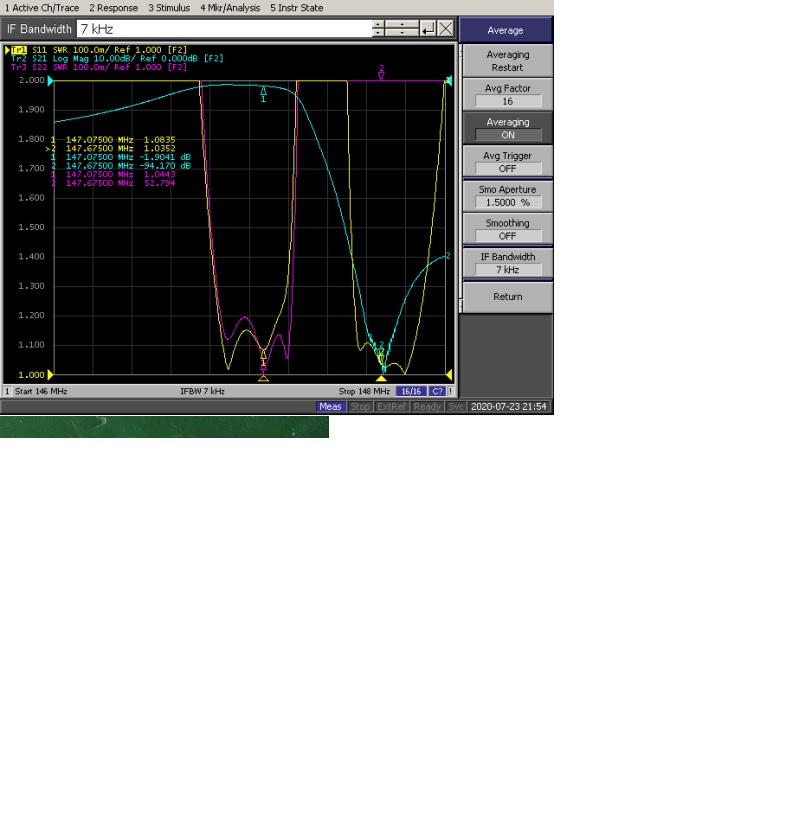

Electrical Specifications
|
|
|
Frequency Range
|
MHz
|
136 to 174
|
|
Number of cavites Tx Side
|
|
2
|
|
Number of Cavities Rx Side
|
|
2
|
|
Input VSWR (max)
|
|
1.5:1
|
|
Impedance
|
Ω
|
50
|
|
Average Power Input (max)
|
W
|
350
|
|
Input Connectors
|
|
N-Female
|
|
Output Connectors
|
|
N-Female
|
|
Frequency separation (min)
|
MHz
|
0.5
|
|
Insertion loss (max) Tx to Ant
|
dB
|
1.5
|
|
Isolation (min)
|
dB
|
70
|
|
Mechanical Specifications
|
|
|
|
Depth
|
in (mm)
|
30.3 (770)
|
|
Length/ Height
|
in (mm)
|
4.17 (106)
|
|
Width
|
in (mm)
|
19 (483)
|
|
Weight
|
lbs (kg)
|
28 (12.71)
|
|
Finish
|
|
chromate conversion
|
|
Actual Shipping weight
|
lbs (kg)
|
17kg
|
|
Shipping dimensions
|
in (mm)
|
45x13x65
|
|
Mounting configurations
|
|
19 inch rack
|
|
Environmental Specifications
|
|
|
|
Temperature range
|
°F (°C)
|
-40 to +140 (-40 to +60)
|
